Standard:

AHD, HD-CVI, HD-TVI, CVBS

Sensor:

1/2.7 " Progressive Scan CMOS

Matrix size:

2.1 Mpx

Resolution:

1920 x 1080  - 1080p

1280 x 720  - 720p

960 x 576  - 960H

Lens:

3.6 mm

View angle:

84 ° (manufacturer data)

82 ° (our tests result)

Range of IR illumination:

80 m

IR illuminator power adjustment:

Automatic

Video output:

AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω

Audio:

No

S/N ratio:

> 65 dB

OSD menu:

Yes

Main features:

D-WDR - Wide Dynamic Range

2D-DNR - Digital Noise Reduction

BLC/HLC - Back Light / High Light Compensation

Day/night mode

ICR - Movable InfraRed filter

AGC - Automatic Gain Control

Auto White Balance

F-DNR (Defog) - Reduction of image noise caused by precipitation

Sharpness - sharper image outlines

Mirror - Mirror image

Privacy zones

Power supply:

12 V DC / 410 mA

Power consumption:

≤ 4.9 W

Housing:

Compact, Plastic / Metal

Color:

White / Black

"Index of Protection":

IP67

Operation temp:

-40 °C ... 60 °C

Weight:

0.41 kg

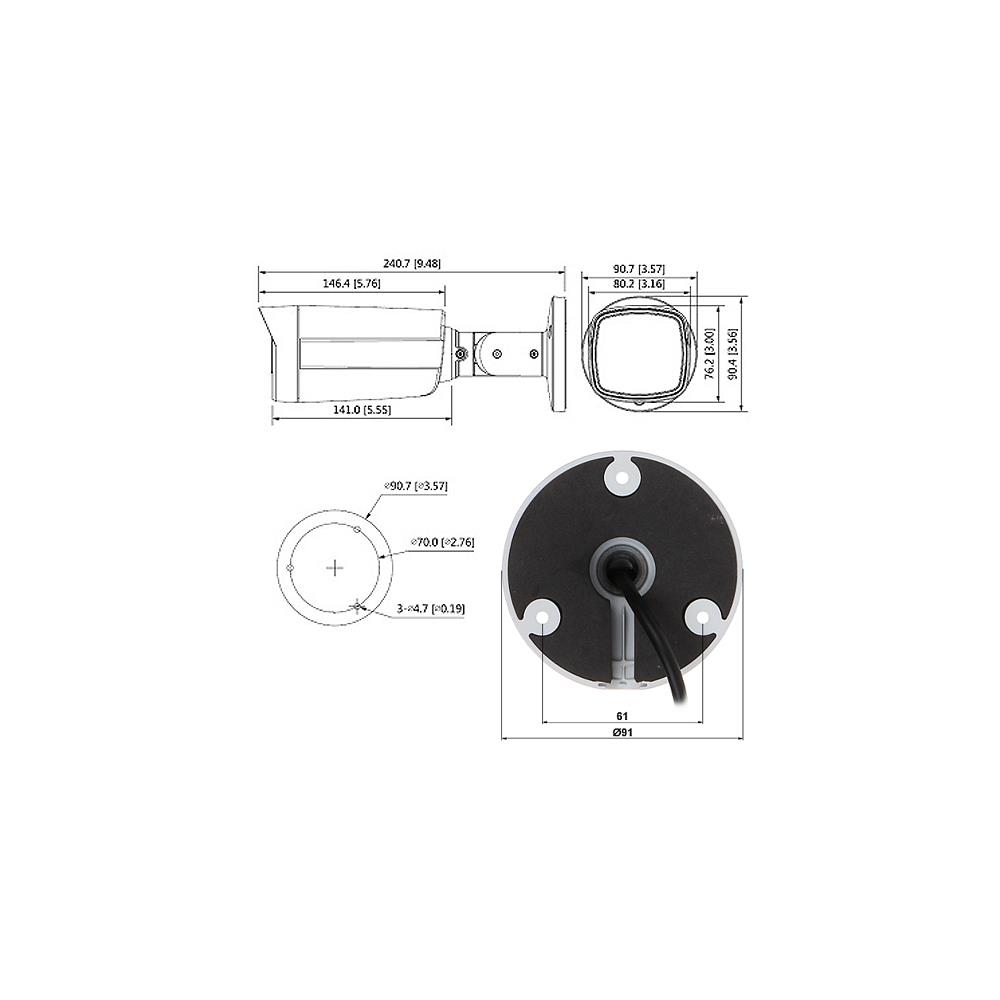

Dimensions:

91  x 90  x 241 mm
